Curved Modular Belt Conveyor

Name: Curved Modular Belt Conveyor
SKU: WD - 0011-20
Availability: InStock

All conveyors dimension and shape can be customized.

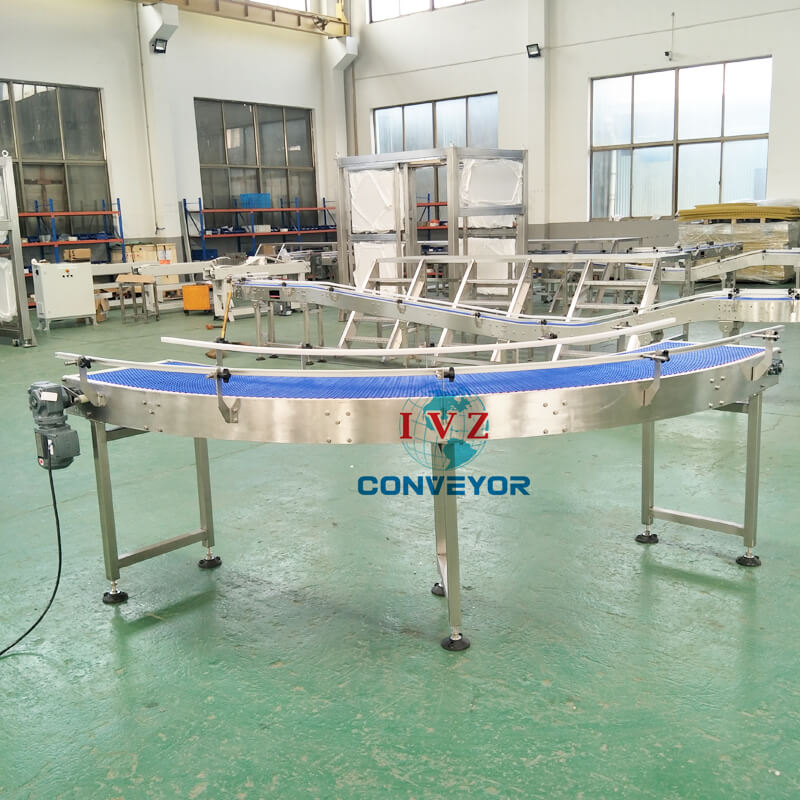

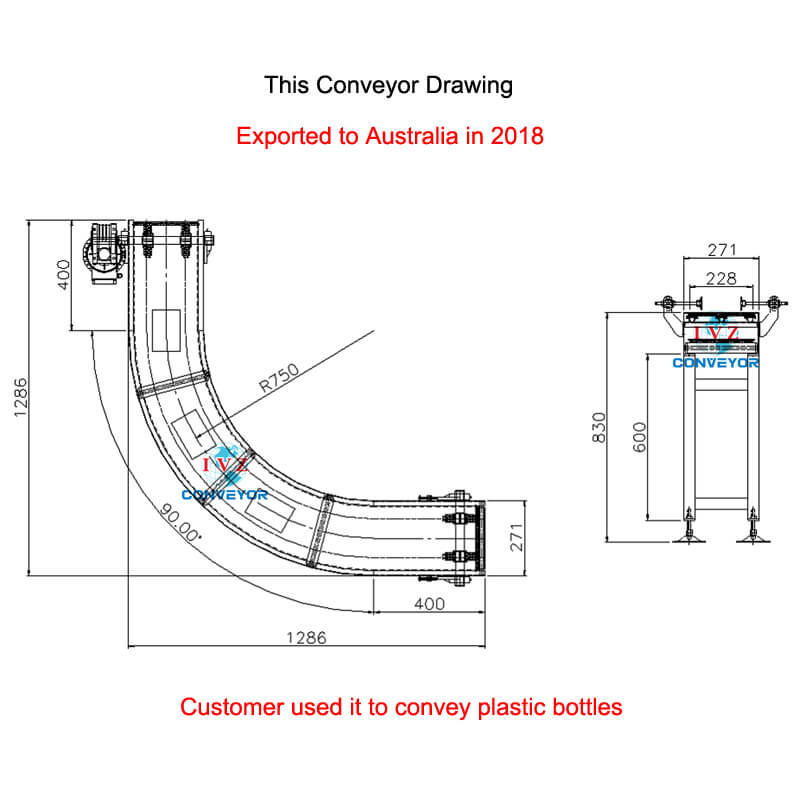

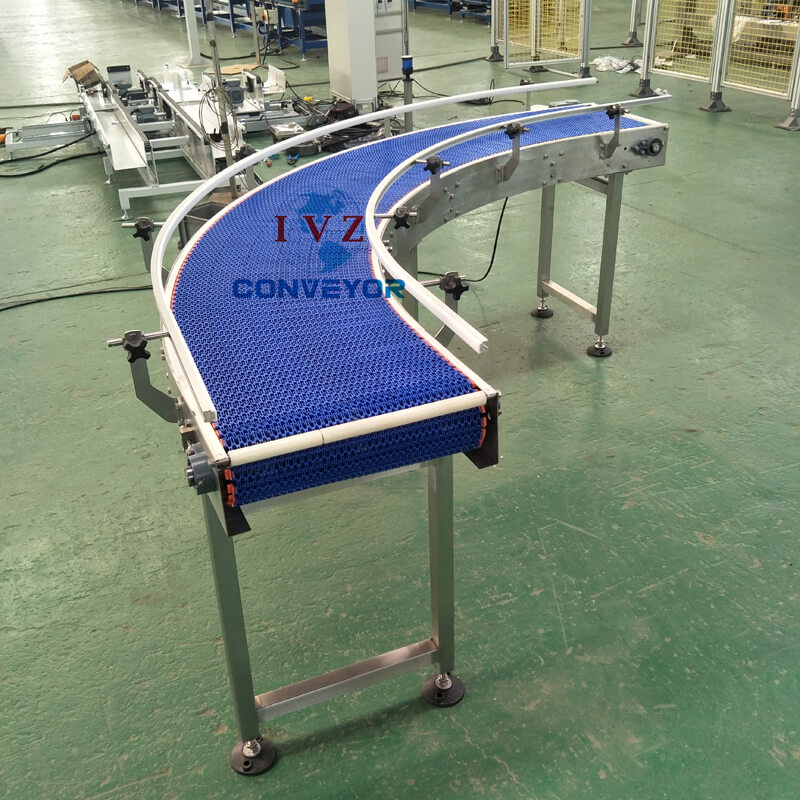

This curved modular belt conveyor has been exported to Australia in 2018, our customer used it to convey plastic bottles, central radius is 750mm, belt material is POM, color can be blue and white, frame is 304 stainless steel, frequency control speed, use SEW motor and ABB converter.

Product

Introduction

Shanghai IVZ Manufacturing Co.,Ltd

Brand:	IVZ Conveyor
Dimension:	Customized (Length/ Width/ Height/ Curving Radius)
Shape:	Straight/ Curved/ Inclined
Frame Material:	Stainless Steel/ Carton Steel/ Aluminium
Belt Material:	POM/ PP/ PE
Belt Feature:	Food Grade/ Head Resistant/ Low Temperature
Belt Color：	White/ Blue
Place of origin:	ShanDong / Anhui China
Motor：	SEW/ ATL/ Chinese Brand, As your needs
Converter：	Danfoss/ ABB/ ATL/ Chinese Brand/ As your needs
Voltage:	220V/380V/415V/Your place standard
Speed:	Constant/ Frequency Control
After-sale services :	Support overseas installation
